DW Spectrum User Manual

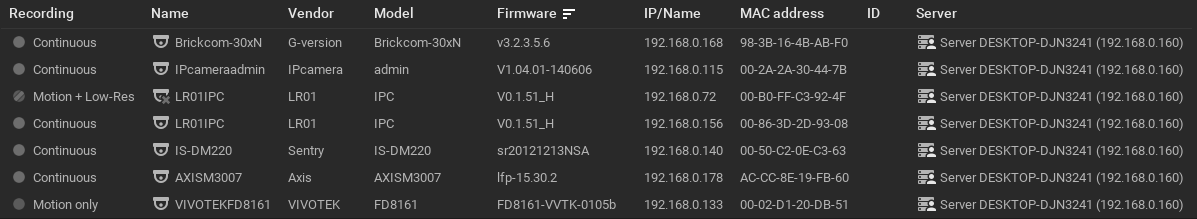

The Cameras List, also known as the Devices List, provides a view and manage all devices registered in the DW Spectrum Site.

To Open the Device List

Open the Site Administration dialog and select Camera List (Ctrl+M).

•Recording – current Recording Mode of the device.

•Name – Device name reported by the device.

•Vendor – Device manufacturer/maker. When interacting with a 3rd party device via ONVIF protocol, Onvif Device is displayed.

•Model – Model of the device

•Firmware – The current firmware version

•IP/Name – Device IP address

•MAC Address – Device MAC address. If it is not possible to determine the MAC address, a unique identifier is shown (i.e. urn_uuid_207f19b2-d5a6-407f-8fec-6265a311058b)

•ID – 1 to 999999 digits for Logical ID (see "Expert Device Settings").

•Server – Server hosting the device

The following controls are available:

•Sort data – Data in each of the columns can be sorted in ascending or descending order by clicking on the header.

•Filter data – Text entered in the Search field applies to all data in the list. Results refresh as characters are entered. To disable filtering, clear the field.

•Select data – To select multiple rows use Ctrl+Click or Shift+Click. Use Ctrl+A to select all devices.

The following tools are available from the Camera List context menu:

•Open – Choose Open, Open in New Tab, or Open in New Window.

•Delete – Disconnects the selected device(s) for the Server host.

•Check Camera Issues – Opens the "Event Log" for the selected device.

•Camera Rules – Opens the "Event Rules List" for the selected device

•Camera Settings – Opens the Camera Settings dialog for the chosen device. If multiple cameras are selected before clicking this setting, the dialog that opens will be feature restricted.

•Select All – Selects all the cameras in the list

•Export Selection to File – Opens the Export dialog. Enter a file name and select a format (HTML or CSV text file).

•Copy Selection to Clipboard – Copies the column data for each selected camera to clipboard, from which it can be pasted into a text editor or spreadsheet application.

NOTE: A camera can be renamed by opening the Camera Settings dialog for a single device and editing the title.
